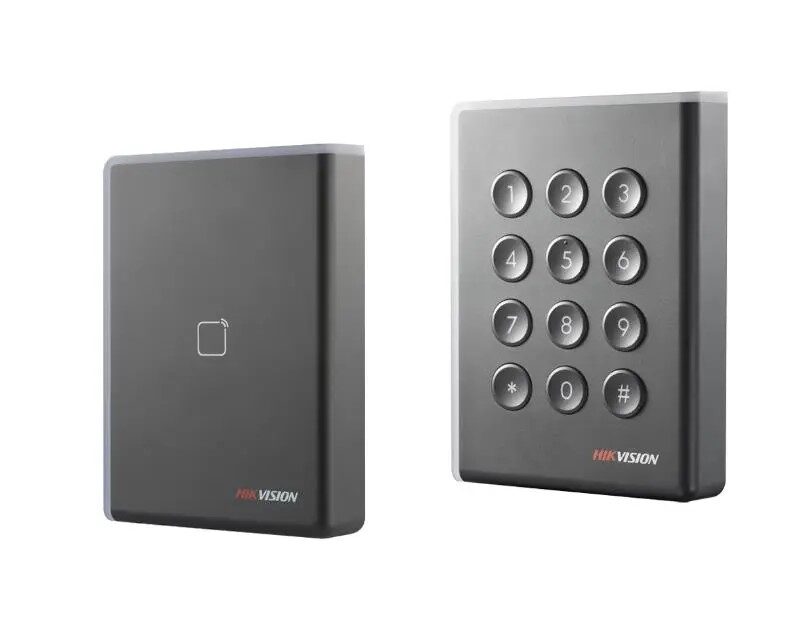

DS-K1108 Pro Series Card Reader

System:

• Processor: 32-bit

Interface:

• RS-485: Support
• Wiegand: Support, set via DIP switch

Authentication:

• Card Reading Distance: ≤50mm (≤1.97″)

General:

• Indicator: Power/Status
• Power Supply: DC 12V
• Power Consumption: ≤2W
• Working Temperature: -20°C to +65°C (-4°F to +149°F)
• Working Humidity: 10% to 90% (Non Condensing)
• Protective Level: IP 65
• Dimensions: 123mm × 88mm × 21mm (4.84″ × 3.46″ × 0.83″)
• Installation: Wall Mounting with/without Gang Box
• Approval: Radio Frequency Standard: ISO 14443-A
• Keypad: Physical Key/No Key
• Buzzer: Support

Function:

• ID Settings: via DIP Switch
