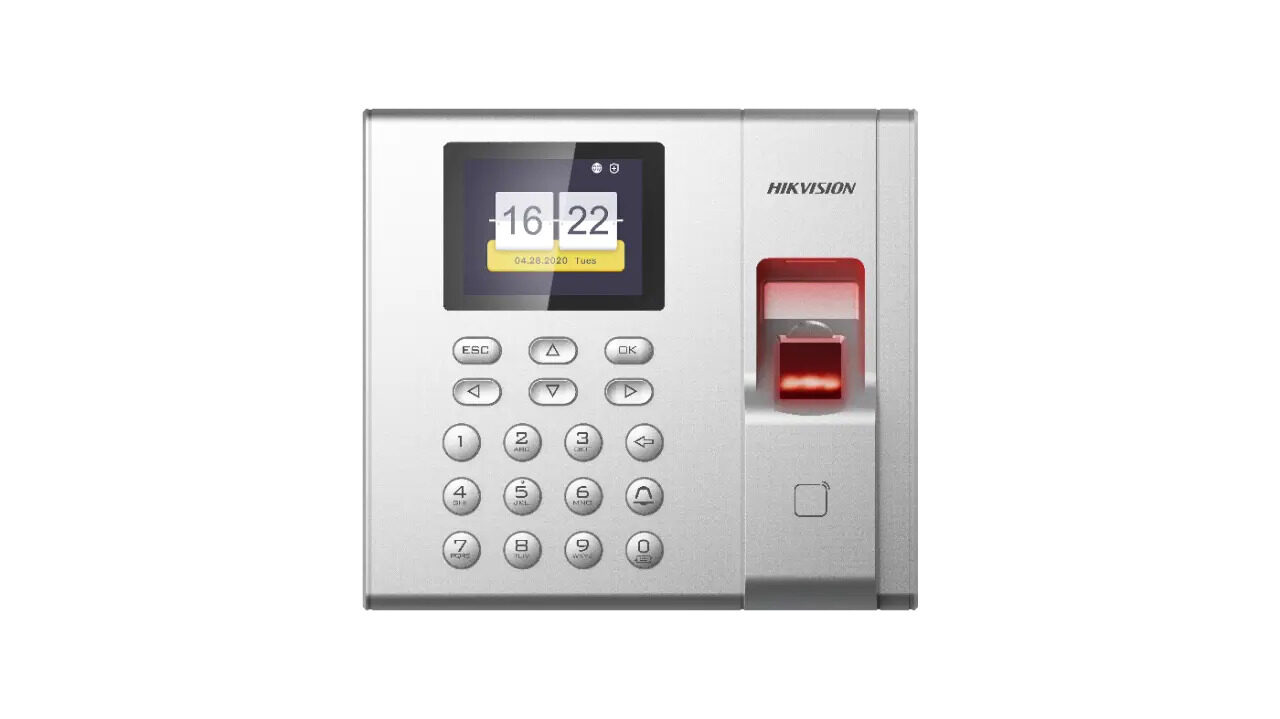

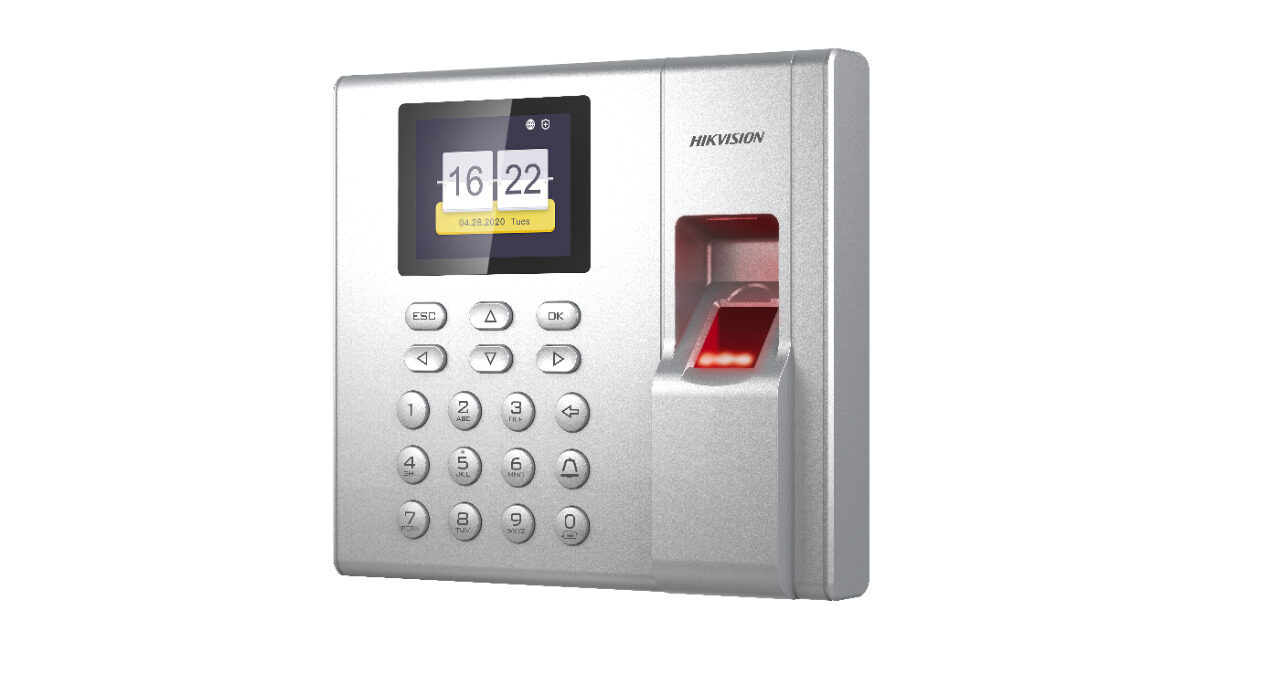

DS-K1T8003MF Value Series Fingerprint Time Attendance Terminal
- Model No.: DS-K1T8003MF
- 2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in Mifare card reading module
- Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
- Support Access Control and Time Attendance Function, Optical Fingerprint Module
- Remotely opens door via Hik-Connect mobile clientï¼›Tamper alarm.
14
People watching this product now!
Description
Display:
- Screen Size: 2.4-inch
- Type: LCD-TFT display screen
Audio:
- Audio Output: 1 loudspeaker, 1 buzzer
Network:
- Wired Network: TCP/IP, 10/100Mbps, self-adaptive
- Communication Protocol: TCP/IP, ISUP
Interface:
- Network Interface: 1
- Lock Control: 1
- Exit Button: 1
- Door Contact Input: 1
- TAMPER: 1
- USB: 1
Capacity:
- Card Capacity: 1000
- Fingerprint Capacity: 1000
- Event Capacity: 100,000
Authentication:
- Card Type: M1 card
- Card Reading Distance: 0 to 5 cm
- Fingerprint Module: Optical fingerprint module
- Fingerprint Comparing Mode: 1:1 and 1:N
- Fingerprint Recognition Duration: ＜ 1 s
General:
- Power Supply: 12 VDC/1 A
- Working Temperature: -10 °C to +55 °C (14 °F to +131 °F)
- Working Humidity: 10% to 90% (no condensing)
- Color: Silver
- Dimensions: 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
- Self Service Reports (SSR): Stand-alone operation, calculate attendance data and export reports via USB interface.
- Installation: Wall mounting
- Weight: Gross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs)
