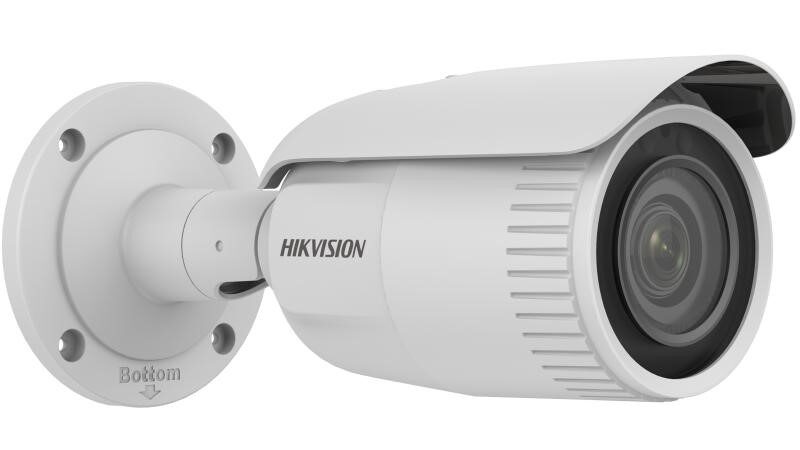

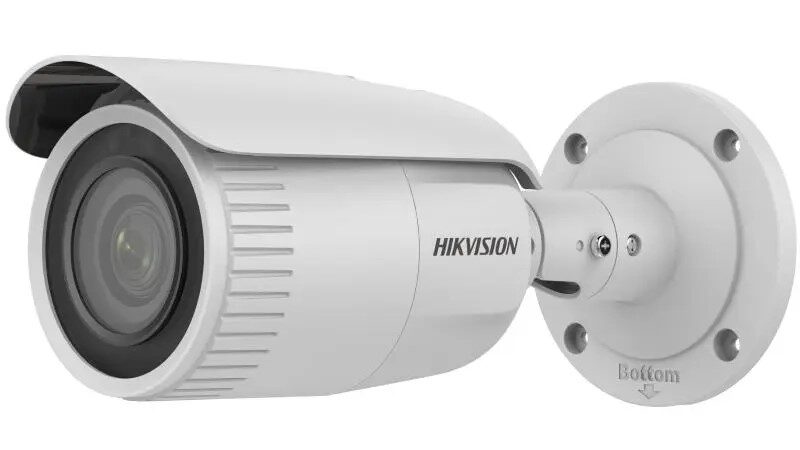

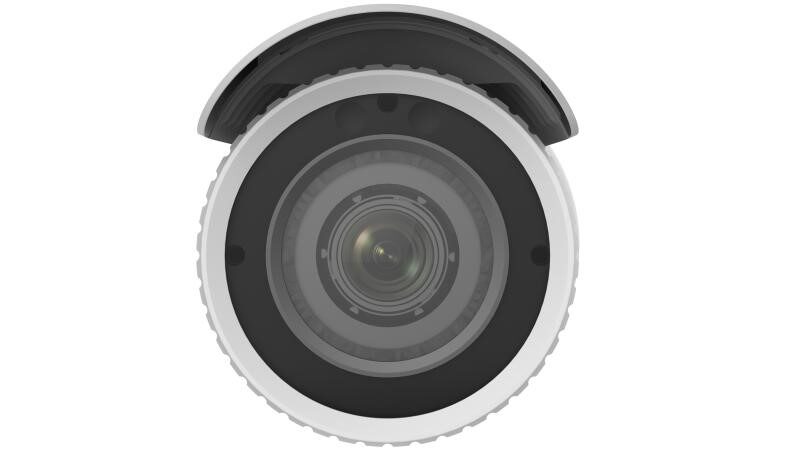

DS-2CD1643G0-I(Z) 4 MP Varifocal Bullet Network Camera

Camera:

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens:

• Lens Type:

  Varifocal lens, motor-driven lens, 2.8 to 12 mm

• Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°

• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6

Illuminator:

• IR Wavelength: 850 nm
• IR Range: Up to 50 m

Video:

• Main Stream:

  50 Hz: 20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream:

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression:

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream

Audio:

• Audio Compression: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: -S: 8 kHz/16 kHz
• Environment Noise Filtering: -S: Yes

Network:

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser:

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• Day/Night Switch:

          Auto, Schedule, Day, Night

• Image Enhancement: BLC, 3D DNR

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Audio

  -S:

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm:

  -S: 1 input,1 output, max. 12 VDC, 30 mA

• Reset Key: Yes

Event:

• Basic Event: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General:

• Power:

  12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W

• Camera Material: Metal
• Camera Dimension: Ø105 mm × 244.4 mm (Ø4.1″ × 9.6″)
• Package Dimension: 315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera Weight: Approx. 1035 g (2.3 lb.)
• With Package Weight: Approx. 1550 g (3.4 lb.)
• Storage Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval:

• EMC:

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety:

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment:

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Electrical Safety Protection: IP67 (IEC 60529-2013)
