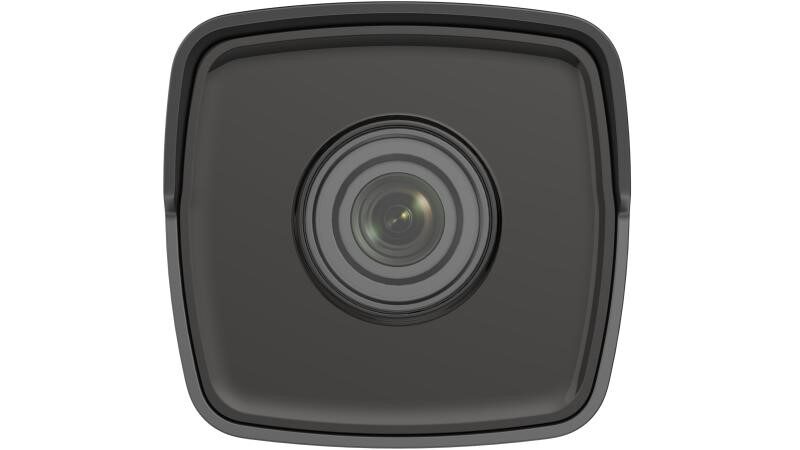

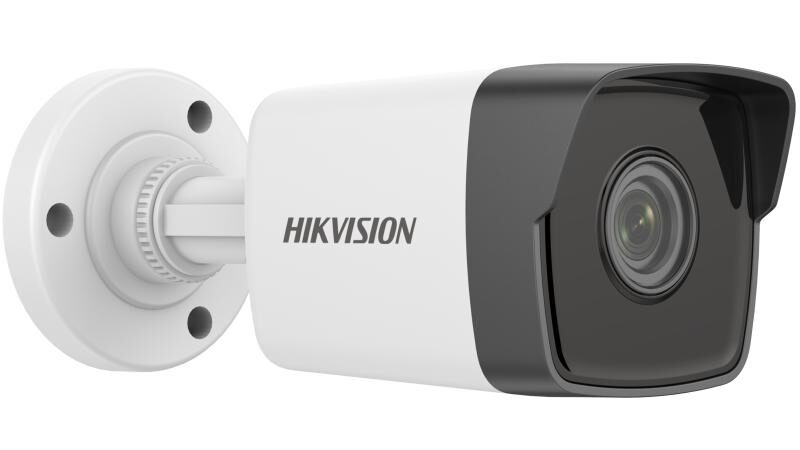

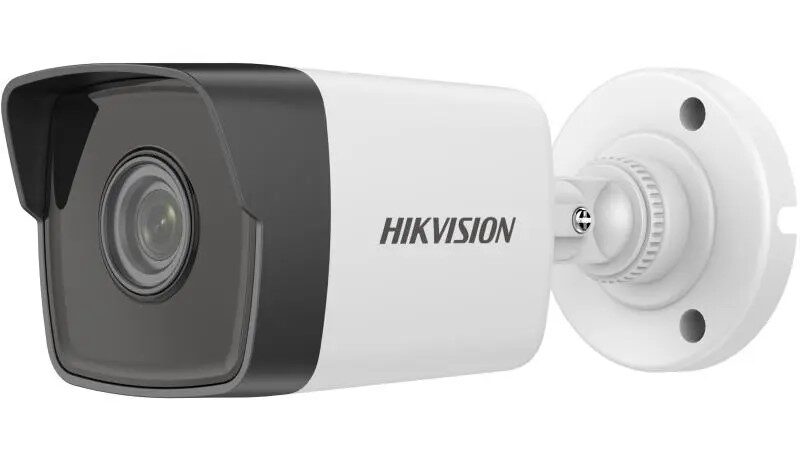

DS-2CD1053G0-I 5 MP Fixed Bullet Network Camera

Camera:

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1920
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0

Illuminator:

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

Video:

• Main Stream:

  50 Hz: 20 fps (2560 × 1920)

  25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1920)

  30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression:

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main profile
• Region Of Interest (ROI): 1 fixed region for main stream

Audio:

• Audio Compression: -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: -UF: 8 kHz/16 kHz
• Environment Noise Filtering: -UF: Yes

Network:

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• APIO: pen Network Video Interface, ISAPI
• User/Host:

  Up to 32 users. 3 levels: administrator, operator and user

  3 user levels: administrator, operator, and user

• Client: iVMS-4200, Hik-Connect
• Web Browser:

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, 3D DNR

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: -UF: Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone: -UF: Yes
• Reset Key-UF: Yes

Event:

• Basic Event: Motion detection, video tampering, exception
• Linkage:

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

General:

• Power:

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension: 177.6 mm × 67.8 mm ×66.2 mm (7″ × 2.7″ × 2.6″)
• Package Dimension: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight: Approx. 270 g (0.6 lb.)
• With Package Weight: Approx. 481 g (1.1 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval:

• EMC:

  FCC SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

  RCM: AS/NZS CISPR 32: 2015;

  IC VoC: ICES-003: Issue 7;

  KC: KN 32: 2015, KN 35: 2015

• Safety:

  UL: UL 62368-1;

  CB: IEC 62368-1:2014+A11;

  CE-LVD: EN 62368-1:2014/A11:2017;

  BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

• Environment:

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
