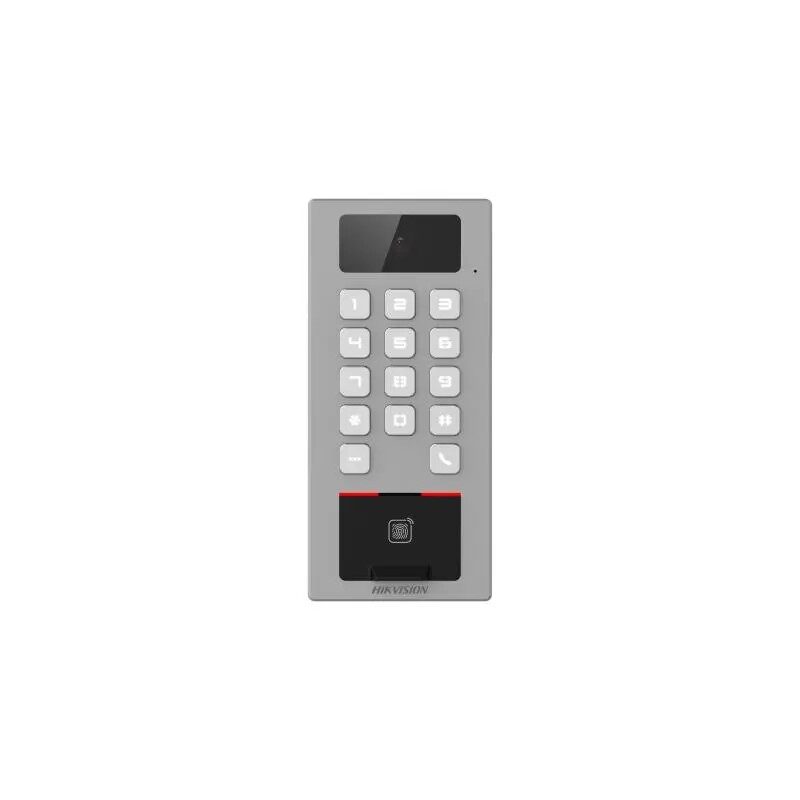

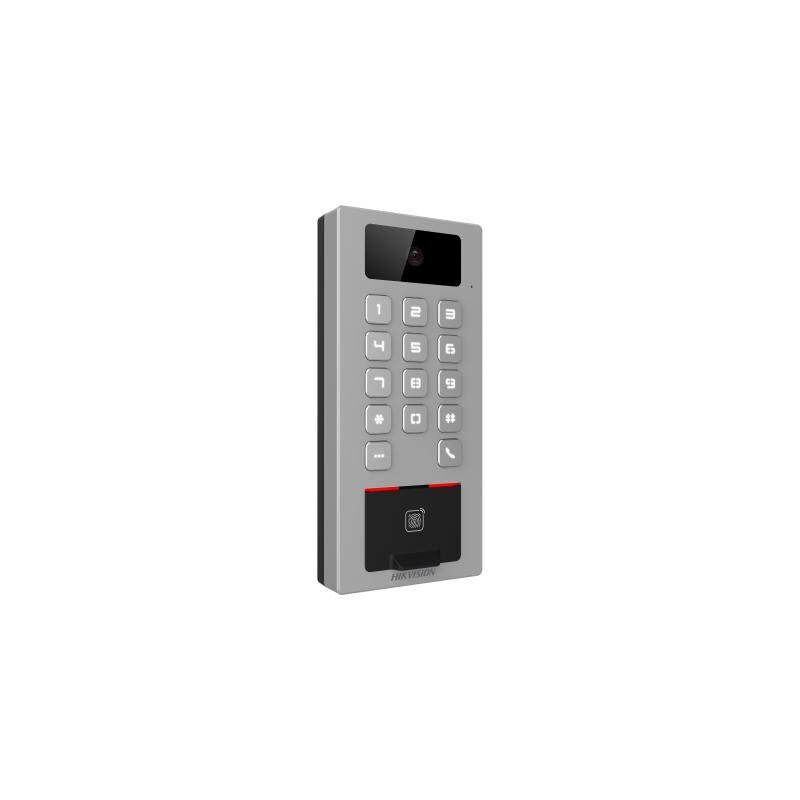

DS-K1T502DBFWX-C Access Control Terminal
- Model No. : DS-K1T502DBFWX-C
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, fingerprint, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
14
People watching this product now!
Description
System:
- Operating System: Linux
Video:
- Lens: 1
- Video Compression Standard: H.264 and H.265
- Resolution: 2 MP
- FOV: HFOV = 110°; VFOV = 81°; DFOV = 122°
- Video Standard: PAL (Default) and NTSC
Network:
- Wired Network: 10 M/100 M self-adaptive
- Wi-Fi: Support
Interface:
- Network Interface: 1
- Lock Control: 1
- Exit Button: 1
- Door Contact Input: 1
- Alarm Input: 1
- Alarm Output: 1
- TAMPER: 1
- RS-485: 1
- Wiegand: 1 (output)
- SD Card Slot: 1
Capacity:
- Fingerprint Capacity: 10,000
- Card Capacity: 100,000
- Event Capacity: 300,000
Authentication:
- Fingerprint Module: Capacitive fingerprint recognition
- Card Type: M1 card; DES: fire card
- Card Reading Distance: 0 ~ 3 cm
General:
- Power Supply: 1 A (12 VDC to 24 VDC)
- Power Consumption: ≤12 W
- Working Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
- Protective Level: IK09, IP65
- Language: Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function:Â
- Two-Way Audio: Support
- Video Intercom: Support
- Hik-Connect: Support
